Membrane Overlay

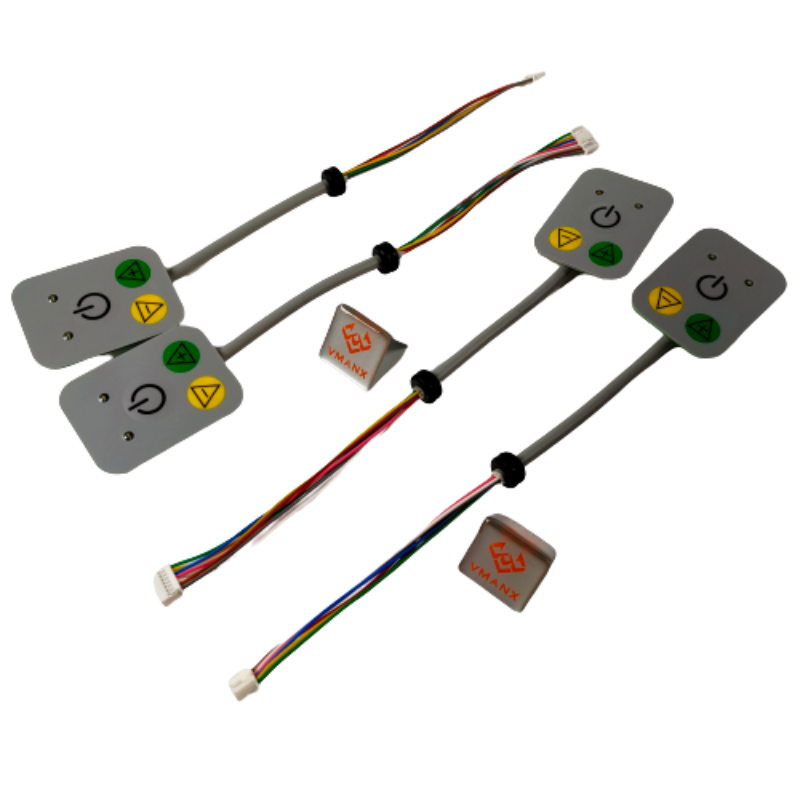

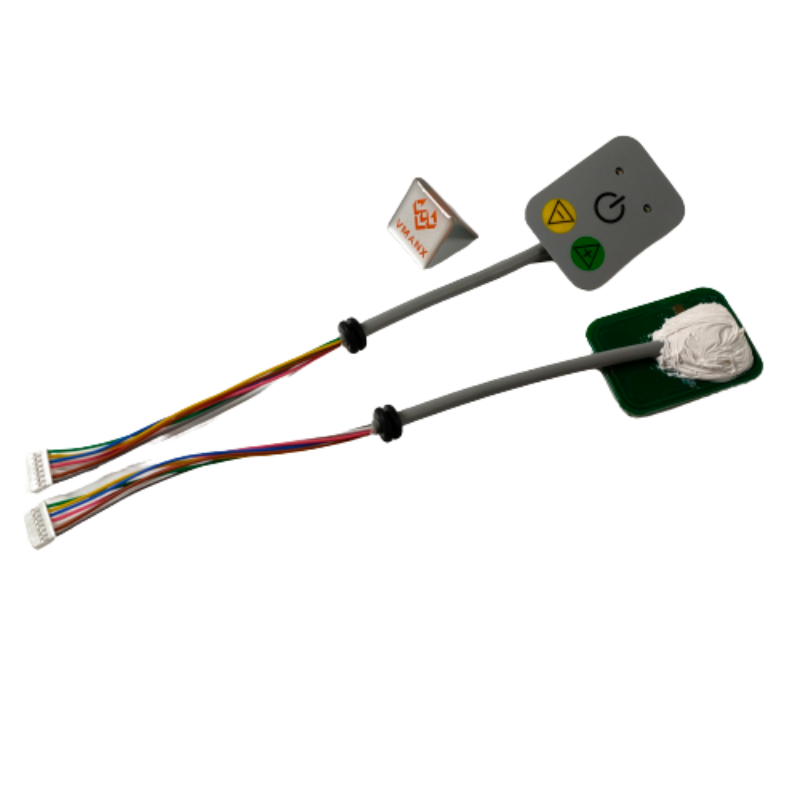

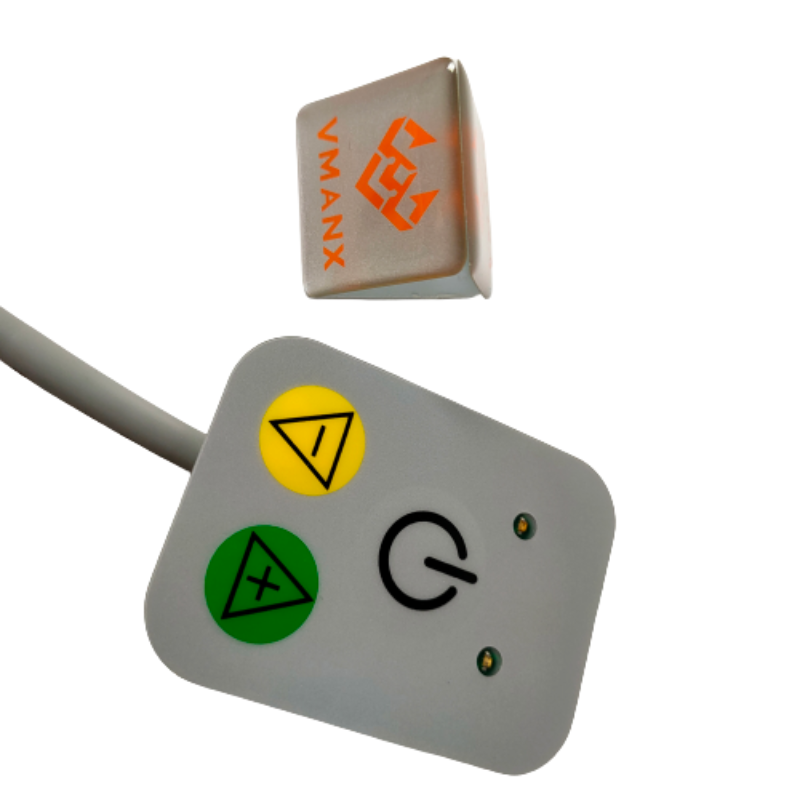

PCBA Membrane switch

Mechanical Properties: Key Life:>200000 Time~1000000 Time (According to the actual needs of customers) Closed Displacement:0.25~0.35mm Operating Pressure:100~350g (According to the actual needs of customers) Bending Resistance of Lea

Product Specification:
  • Working Voltage : ≤5.5VDC
  • Working Current : ≤100mA
  • Contact Resistance : 0.5~100Ω
  • Insulation Resistance : ≥100MΩ
  • Pressure Resistance of Substrate Material : 2kVDC
  • Rebound Time : ≤6ms
  • Loop Resistance : ≤100Ω
  • Insulation Ink Pressure : 100VDC
  • Working Temperrature : -20℃~+80℃
  • Storage Temperature : -40℃~+85℃
  • Humidity : 45%±5%
INQUIRY NOW
Product Details

Mechanical Properties:
Key Life:>200000 Time~1000000 Time
(According to the actual needs of customers)
Closed Displacement:0.25~0.35mm
Operating Pressure:100~350g
(According to the actual needs of customers)
Bending Resistance of Lead Wire:D=10mm Steel Bar
If The Pressure Is Continuously Rolled For 80 Times,
The Circuit Will Not Break.

Application Program:
Aviation Facilities、Military Equipment、
Medical Apparatus And Instruments
Intelligence Control、Commercial Electrical Appliances、
Security Products、Equipment Control、Industrial Control、
Consumer Goods,etc
