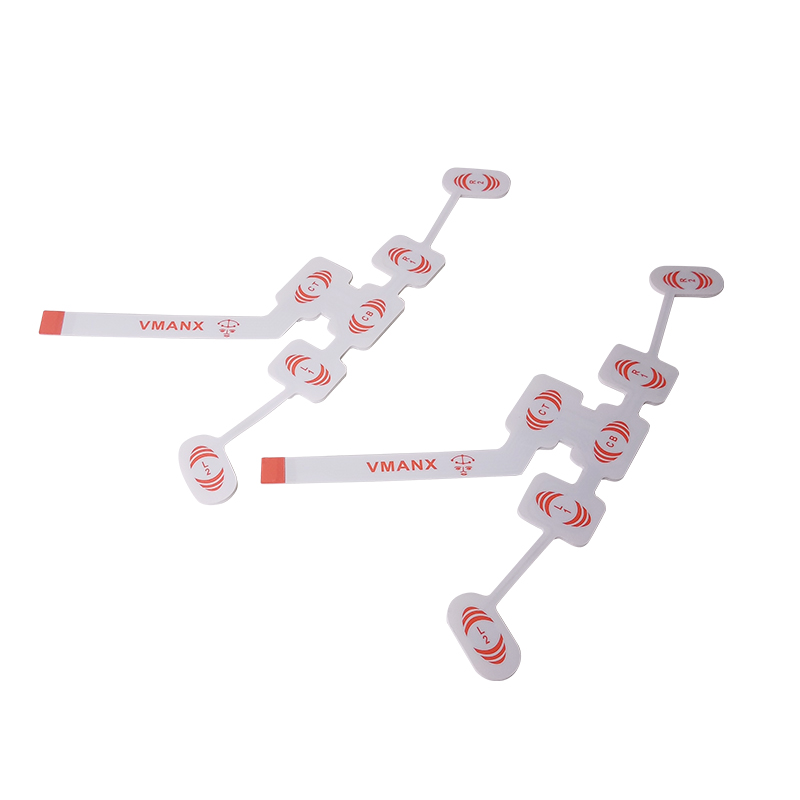

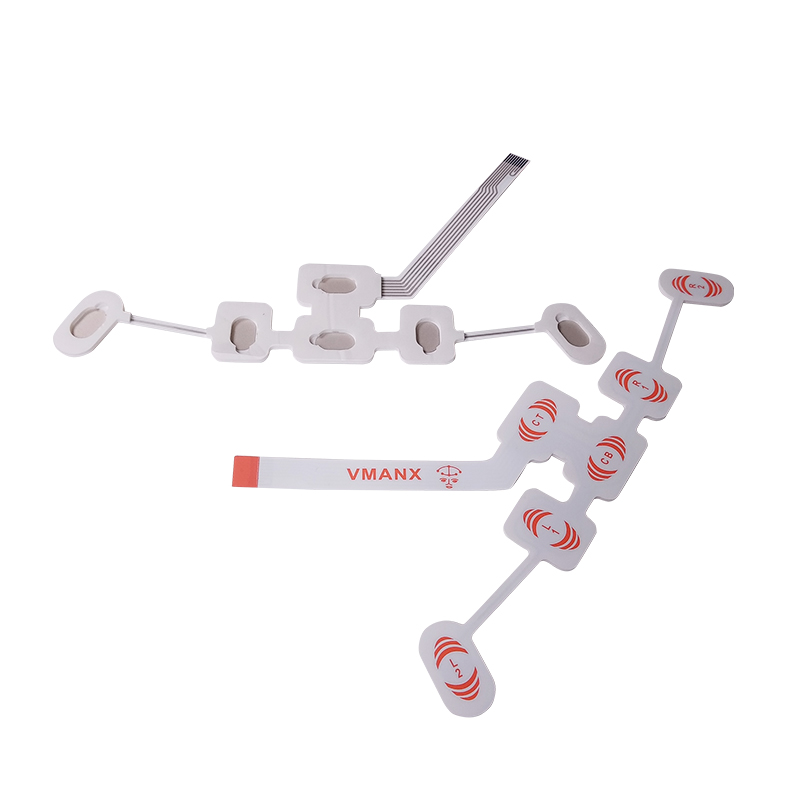

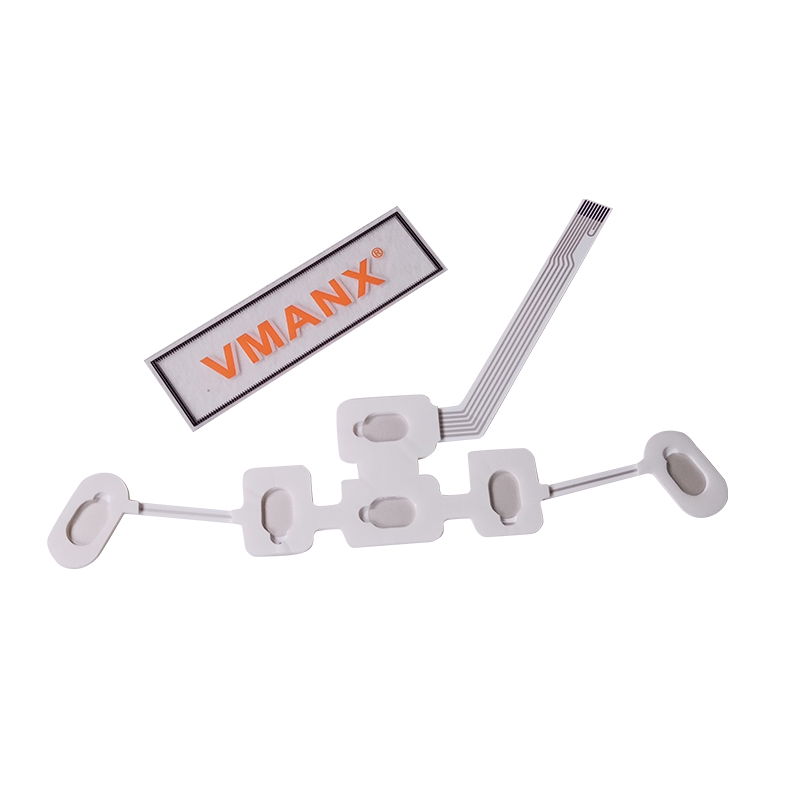

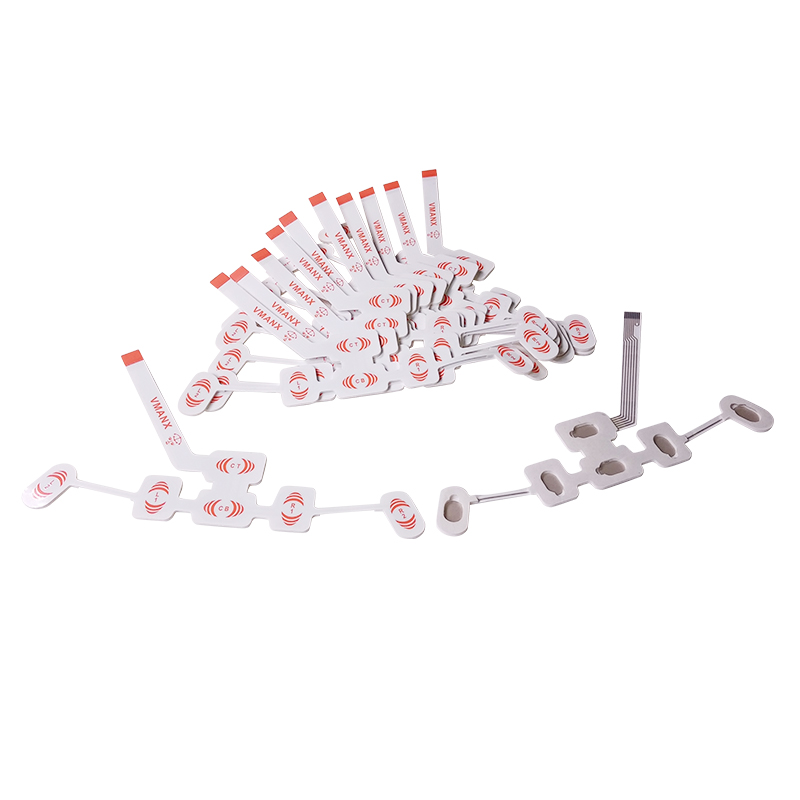

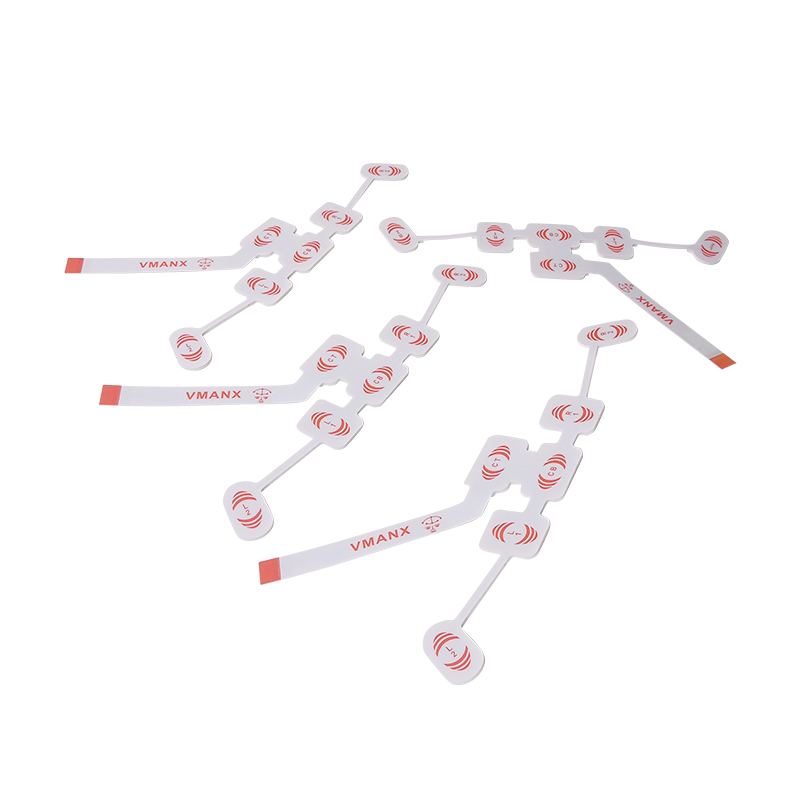

Specialized Medical EEG Electrode Sheet

AC Impedance:

Excitation conditions: sinusoidal alternating current 100μAp-p±5%, 10Hz±10%

Range: 0-20KΩ, accuracy: ≤10KΩ 1%±10Ω, >10KΩ 3%, test time: >60s

DC offset voltage:

Excitation conditions: DC input resistance ≥ 10MΩ

Range: ±1200mV, accuracy： ≤100mV1%±0.5 mV, >100mV1%, test time: 60-90s

Compound Offset Instability and Internal Noise:

Excitation conditions: RC bandpass 0.15-100Hz

Range: 0-2000μV(p-p), accuracy: ≤150μV ±7.5μV, >150μV5%, test time: 60-360s

Bias Current Tolerance:

Excitation conditions: DC current 200nA±5%

Range: ±1200mV, accuracy: ≤100mV1%±0.5mV, >100mV1%, test time: more than 8h

Defibrillation overload recovery:

Excitation conditions: Capacitance 10μF±5%, power 200V±2%

Range: ±1200mV, accuracy: ≤100mV1%±0.5mV, >100mV1%, test time: 5, 15, 25, 35s.

Characteristics of EEG electrodes

1. Reflect the excitation or inhibition state of the cerebral cortex, accurately provide detection and evaluation of EEG consciousness state, and meet clinical needs;

2. The brain electrode does not contain latex and uses imported conductive adhesive and high-quality 3M double-sided adhesive, with low impedance and good adhesion;

3. Through biocompatibility testing, there is no cytotoxicity, skin irritation, or sensitization reaction;

4. The product has been clinically validated for 7 years, with sensitive measurement and precise numerical accuracy;

5. Good product compatibility

6. Strong anti-interference ability, the sensor has a certain degree of anti-interference ability against the electromagnetic signals of other electrical equipment.
