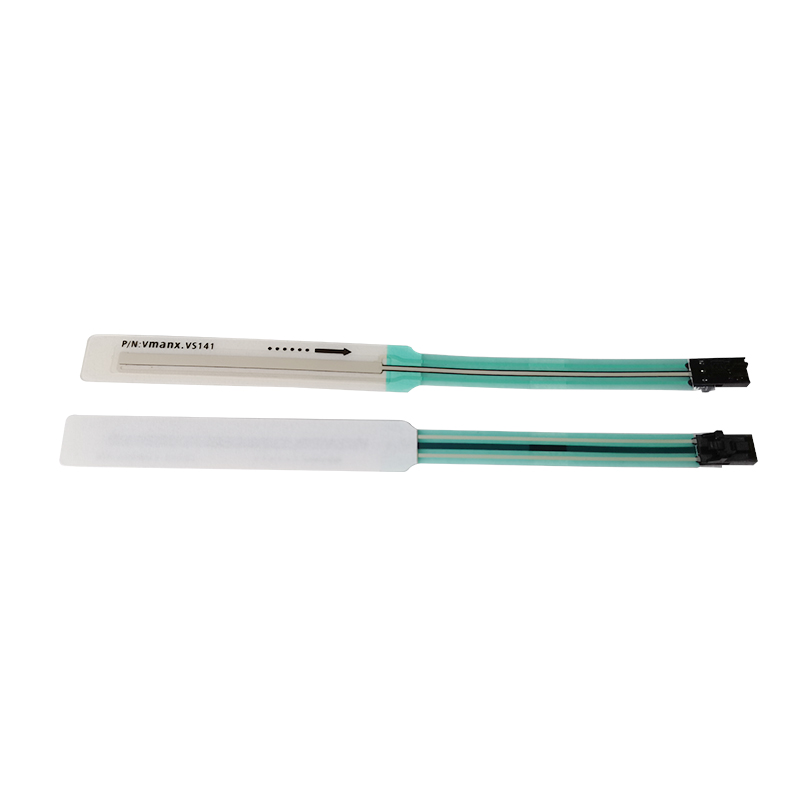

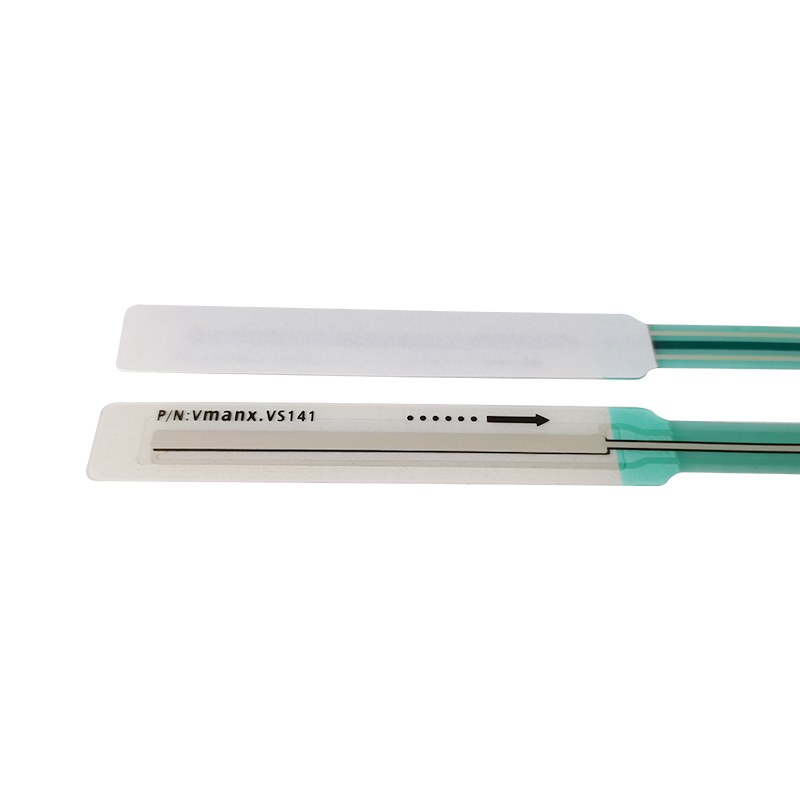

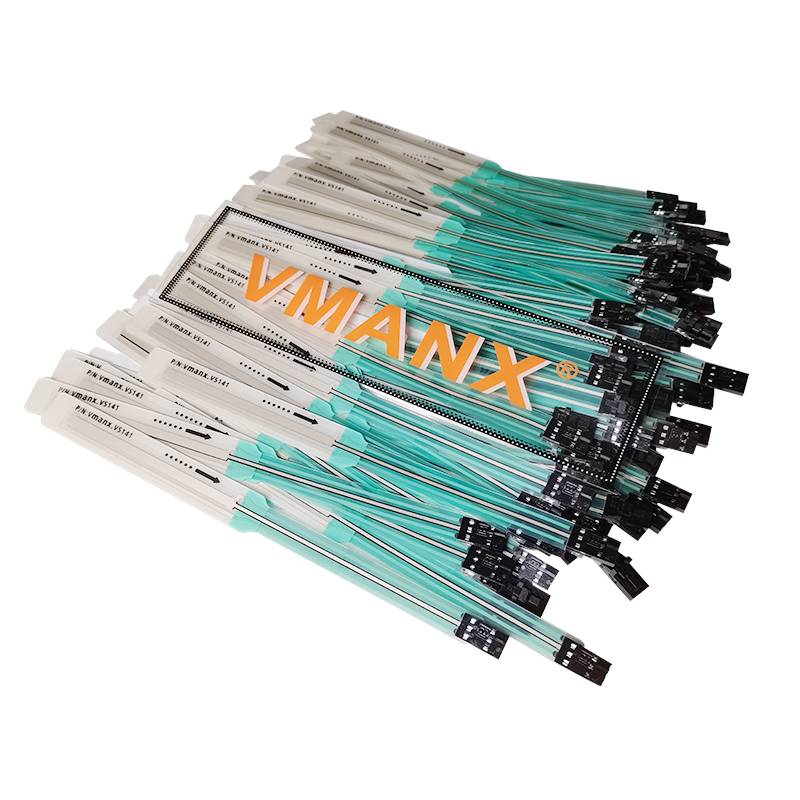

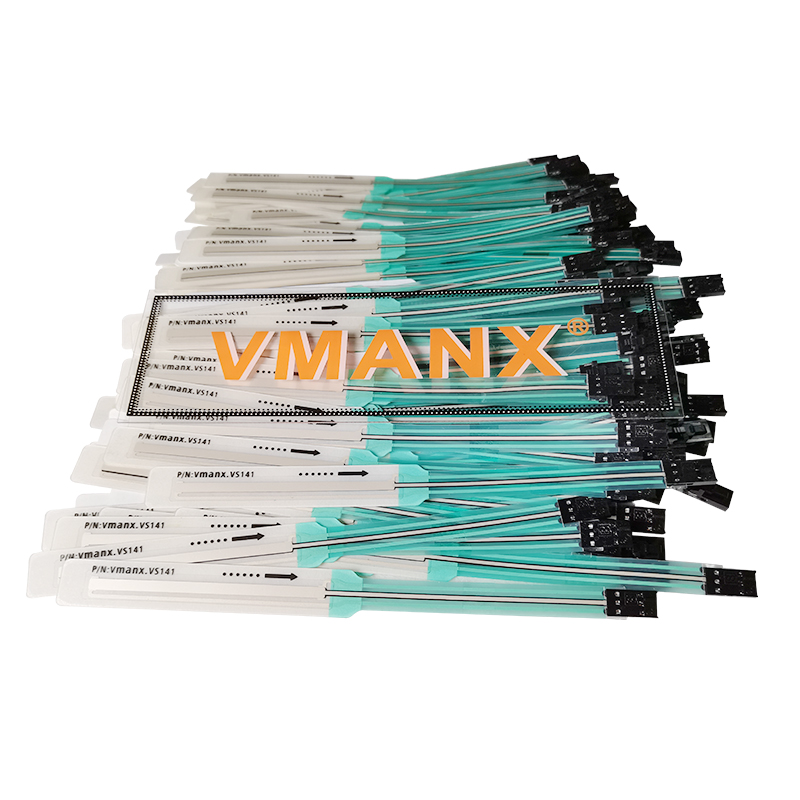

Displacement Sensor, Ultraflat Industrial Potentiometer Membrane
Product Specification:
FEATURES
Sealed
Infinite resolution
High integration capacity
Durability
Rectilinear: UIPMA type
Rotational: UIPMC type
Material categorization: for definitions of complian
|
QUICK REFERENCE DATA |
|
|
Sensor type |
LINEAR or ROTATIONAL, conductive plastic |
|
Output type |
Output by connector |
|
Market appliance |
Industrial |
|
Dimensions |
4 mm (thickness max.) |
|
ELECTRICAL SPECIFICATIONS |
||
|
PARAMETER |
UIPMA |
UIPMC |
|
Total resistance (Rn) |
4.7 kΩ |
10 kΩ |
|
Tolerance on Rn |
± 30 % |
|
|
Dissipation |
≤0.1 W/cm of travel |
≤1 W to 70 °C |
|
Theoretical electrical travel (TET) |
20 mm to 250 mm |
312° |
|
Tolerance on TET |
± 1 mm |
± 3° |
|
Useful electrical travel (UET) |
TET - 2 mm |
306° |
|
Electrical continuity travel (ECT) |
TET + 4 mm |
325° |
|
Linearity |
± 2 % |
± 5 % |
|
Temperature coefficient |
-300 ppm/°C ± 300 ppm/°C |
|
|
Collector / track current (Ic) |
≤ 1 mA |
|
|
Recommended current Ic |
≤ 100 μA |
|
|
Recommended load impedance |
≥100 Rn |
|
|
Output smoothness |
< 0.1 % (NFC 93 255) |
|
|
MECHANICAL SPECIFICATIONS |
||
|
PARAMETER |
UIPMA |
UIPMC |
|
Design |
Flexible insulating films |
Flexible insulating films |
|
Mechanical trave |
Electrical continuity travel |
Electrical continuity travel |
|
Backlash |
< 0.1 mm |
< 0.3° |
|
Mounting |
With double-sided adhesive on flat, clean, and dry support |
|
|
Speed displacement |
≤ 1.5 m/s |
|
|
Drive |
Force ≥ 0.3 N |
Torque ≥ 1 N cm |
|
Protection class (NFC 20 010) |
IP66 (electrical connection and plug excluded) |
|
|
Maximum alignment fault |
± 1 mm |
|
|
PERFORMANCE |
||
|
PARAMETER |
UIPMA |
UIPMC |
|
Life |
> 3M cycles (depending on chosen wiper) |
|
|
Operating temperature range |
-10 °C to +50 °C |
|
|
Storage temperature range |
-40 °C to +50 °C |
|
|
Support |
Flat, clean, and dry |
|
